In support of an alkylation revamp, an industrial customer needed acid coolers, an acid settler, and various piping components transported to the plant and then lifted into place.

The 66'-10" long, 4'-10" diameter acid coolers weighed in at 125,000-pound while the 83'-4" long, 26'-6" diameter acid settler weighed 680,000 pounds.

Barge and Roll Off

Deep South received the acid coolers, acid settler and piping components from an ocean-going vessel at the Port of New Orleans. The vessels were lifted onto a waiting barge and then hauled to the client’s established roll-off site. The acid settler was then rolled off the barge to an 18-axle-line, double-wide Scheuerle SPMT for transport to the site. Once onsite, the settler was moved to a 12-axle-line Scheuerle “Split” SPMT-SL with a single wide 6-line SPMT following for power pack support due to limited clearances from overhead structures. The acid coolers were moved with a 12-axle-line Scheuerle SPMT.

Cantilever Connections

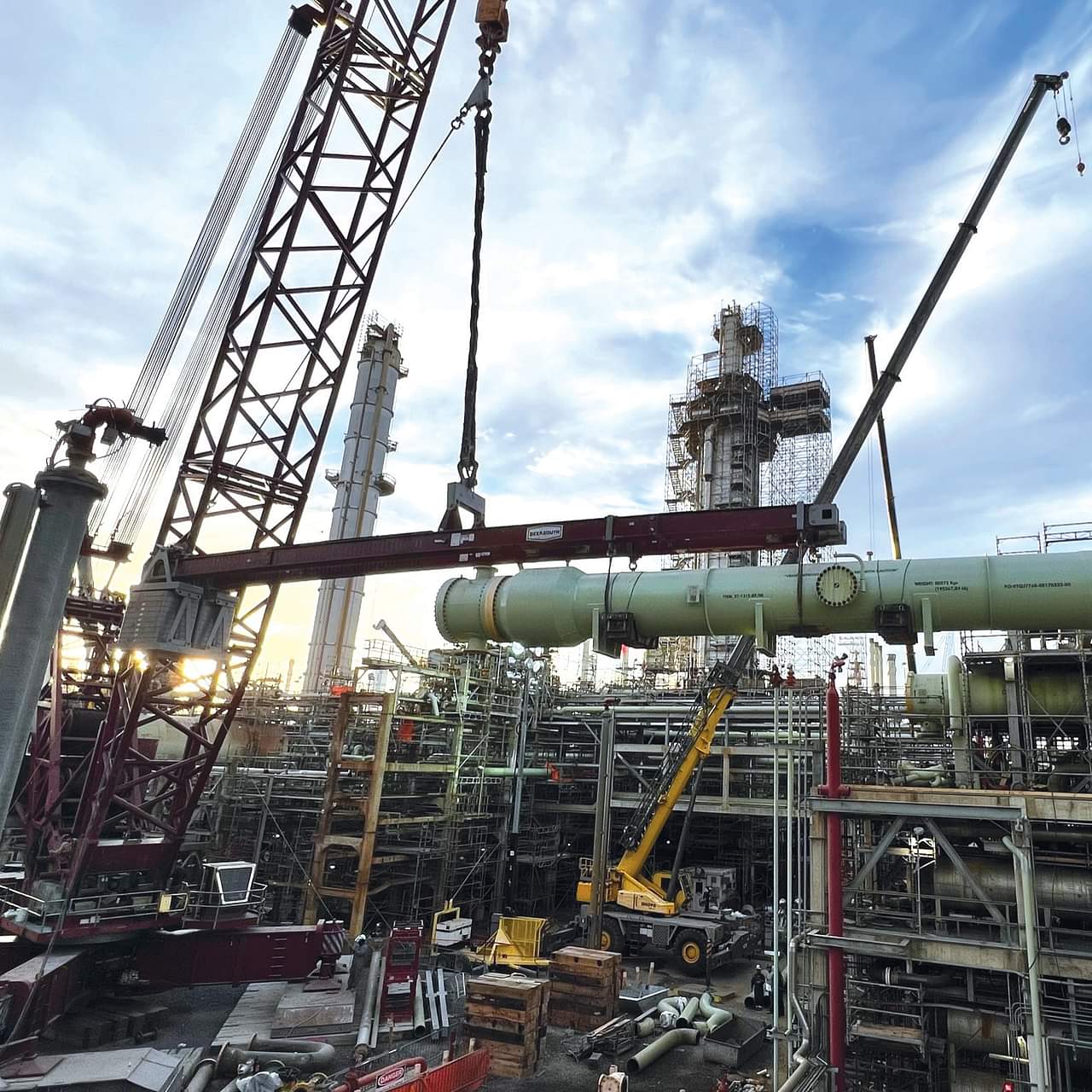

Once ready for placement, the acid settler was lifted and tailed up over a pipe rack with an 1,800-ton VersaCrane™ TC-28000 in configuration 4/8 (273' boom, 400 kips main cwt, 1,080 kips aux. cwt) with a 750-ton VersaCrane™ CC-9600 in configuration 6 (200' boom, 406 kips main cwt, 508 kips hinge cwt. The acid coolers were lifted using a 1,500-ton VersaCrane™ TC-24000 in configuration 5 and placed under a difficult-to-access platform with a Deep South-designed cantilever beam system (instead of a traditional jack-and-slide), which cut the lift and set time in half.

The cantilever beam system makes it easier to access tight areas that overhead cranes cannot. The system has a compact counterweight design allowing for a decrease in required headroom, customizable rigging attachment points for a multitude of applications, beam extensions available for increased reach, and wireless operation. Dual configurations are available for increased capacities.

The project was completed safely and on schedule.

--------
