Hydraulic gantries

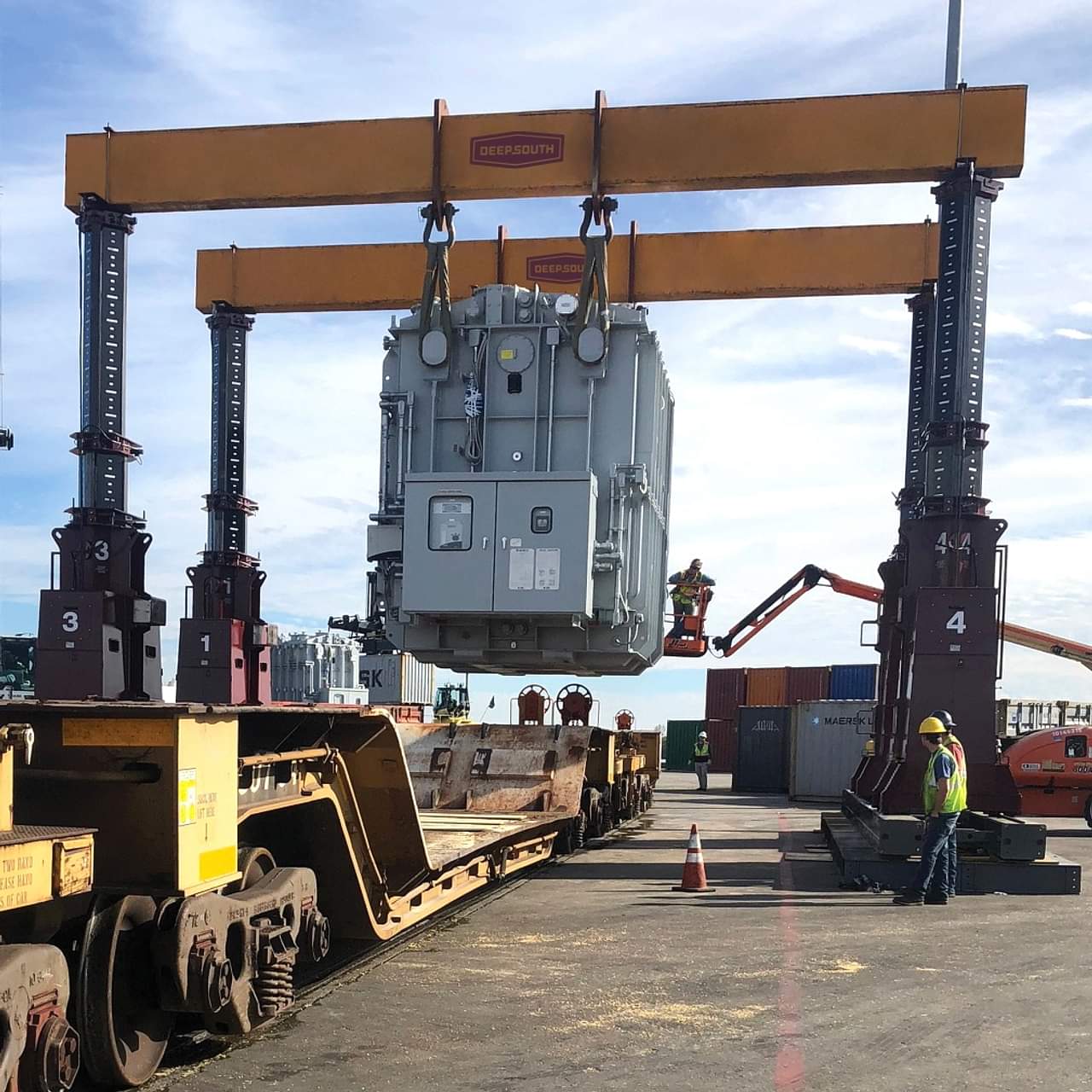

Hydraulic gantries are a game changer when it comes to lifting. Being able to lift and position heavy loads where traditional cranes will not fit while remaining mobile is their specialty.
Deep South's gantries are designed with a wider base to improve stability. They can be positioned under, over, around, or adjacent to the load in order to fit the job. The long reach hydraulic cylinders, beams, and tracks combine to form a balanced system that allows safe load raising, lowering, and traversing.
800-ton GANTRY
Fully-extended height of 48'-0"; fully-retracted height of 23'-8"; 8'-wide base
700-ton GANTRY
Self-propelled; fully-extended height of 39'-6"; fully-retracted height of 13'-10"; 5'-wide base
500-ton GANTRY (34pt5400ws)
Fully-extended height of 30'-2"; fully-retracted height of 10'-2; 4'-wide base
500-ton GANTRY (24PT500LT)
Fully-extended height of 27'-6"; fully-retracted height of 11'-6"; 4'-wide base
-
Type
Specialty
-
Rating
up to 800T
Related Projects
Tight Tailswing, Turnkey Solution
View Project
Tight Tailswing, Turnkey Solution
In the Southeast, Deep South performed a complex turnkey project that required equipment modification and careful planning.

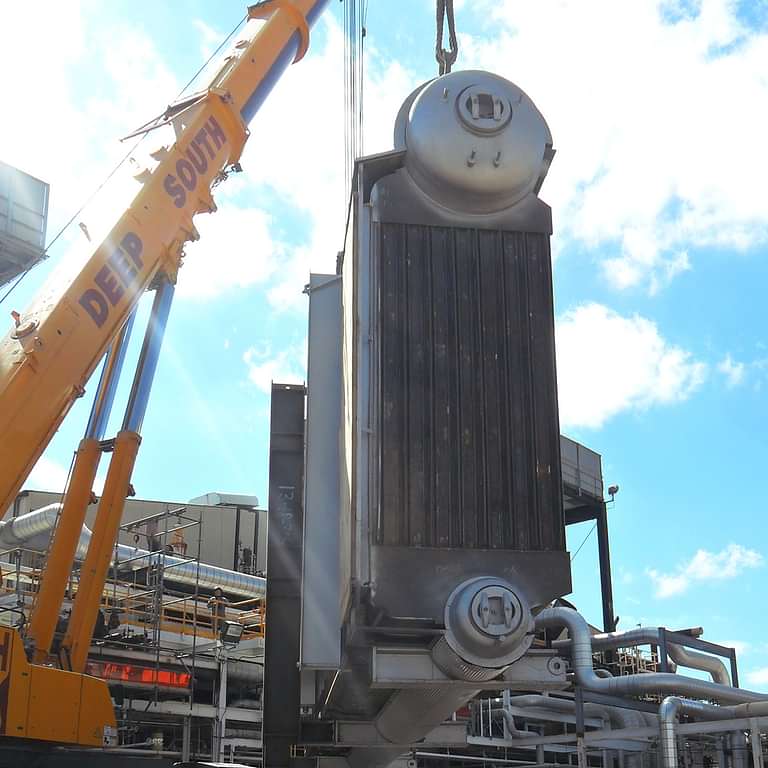

400,400 Pound Boiler Lifts
View Project
400,400 Pound Boiler Lifts

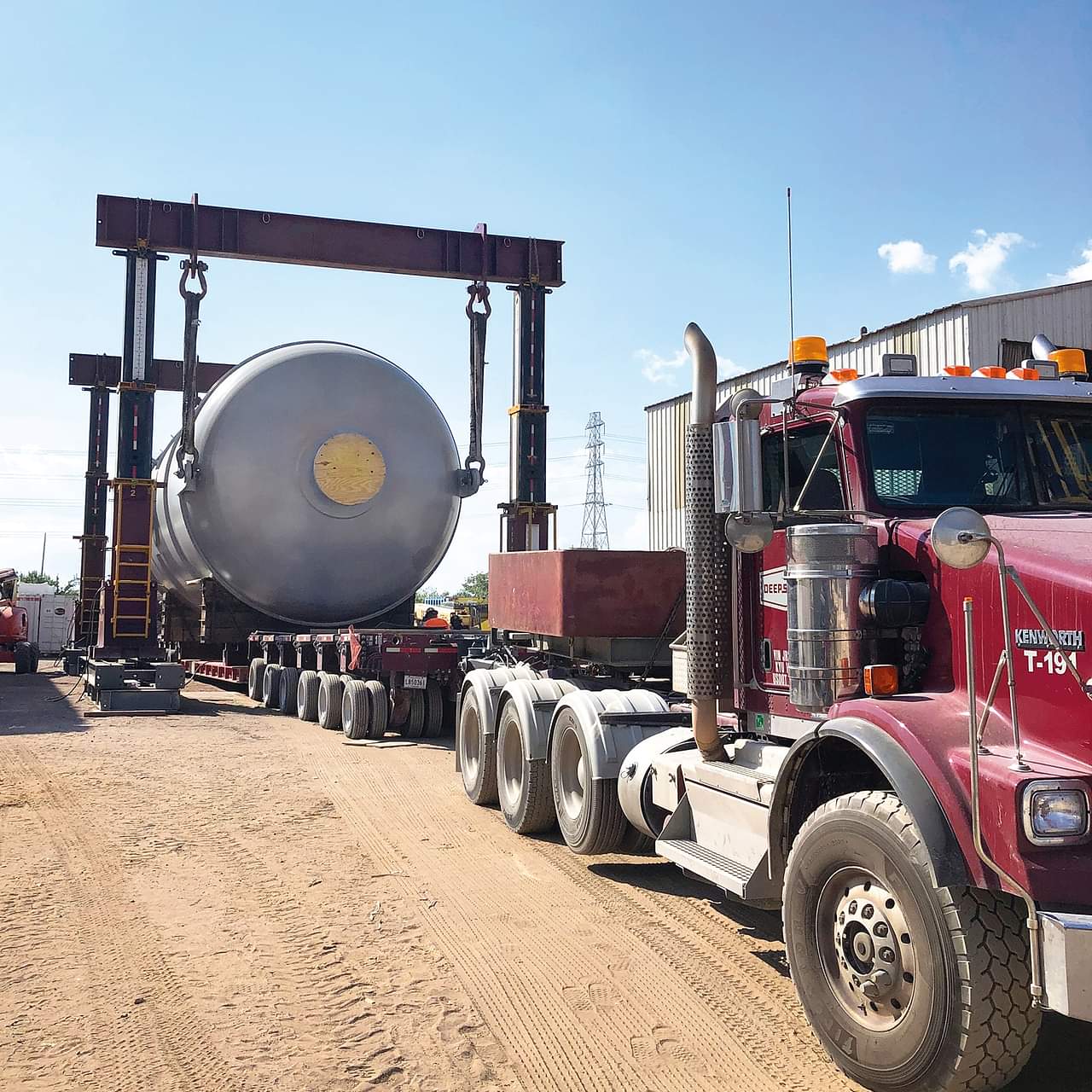

Three boilers were delivered horizontally to Deep South’s 500-ton hydraulic gantry system and then trans-loaded onto Scheuerle SPMTs in a very congested unit.
Overcoming Limited Space with Specialty Tools
View Project
Overcoming Limited Space with Specialty Tools
In the Midwest, Deep South transported and set a tower weighing 227,000 pounds and measuring 134’ long by 8’-2" in diameter.
