400,400 Pound Boiler Lifts

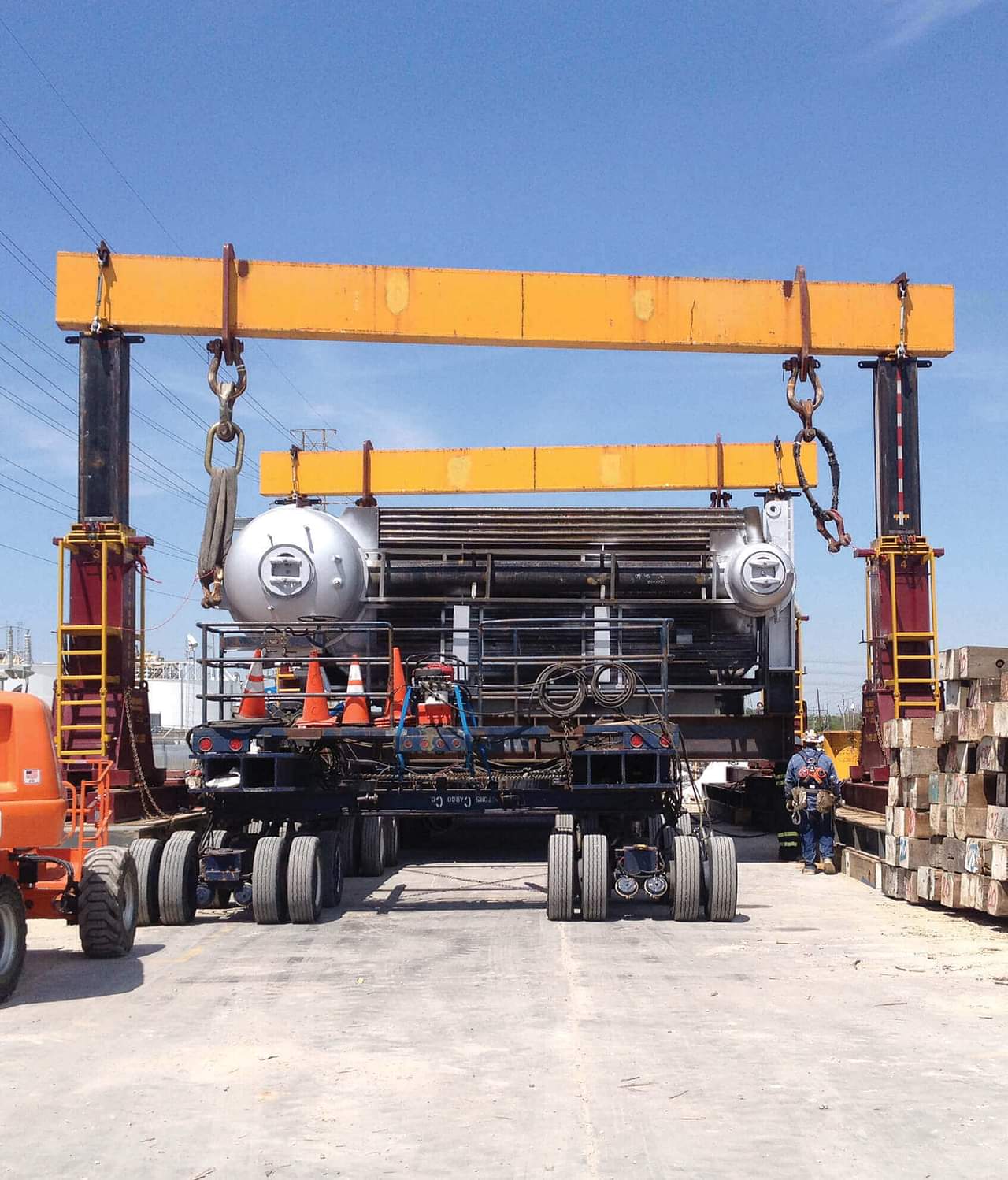

Three boilers were delivered horizontally to Deep South’s 500-ton hydraulic gantry system that was setup outside of the plant. The boilers were lifted and trans-loaded onto 12-line double-wide Scheuerle SPMTs and transported into the Southwest petrochemical refinery through a very congested unit.

Deep South then set them onto their foundations using two 500-ton Liebherr LTM 1400-7.1s and a 265-ton Liebherr LTM 1220-5.1. Each boiler weighed 400,400 pounds and was 52’ long, 13’ wide, and 26’ high.

  • Equipment Used

    • Hydraulic Gantries
    • Scheuerle SPMT
    • Liebherr LTM 1220-5.1/5.2
    • Liebherr LTM-1400-7.1
  • Services Used

  • By the Numbers

    • 3 Boilers weighing 400,400 lbs
    • Measuring 52’ x 13’ x 26’
Boiler Lift Project

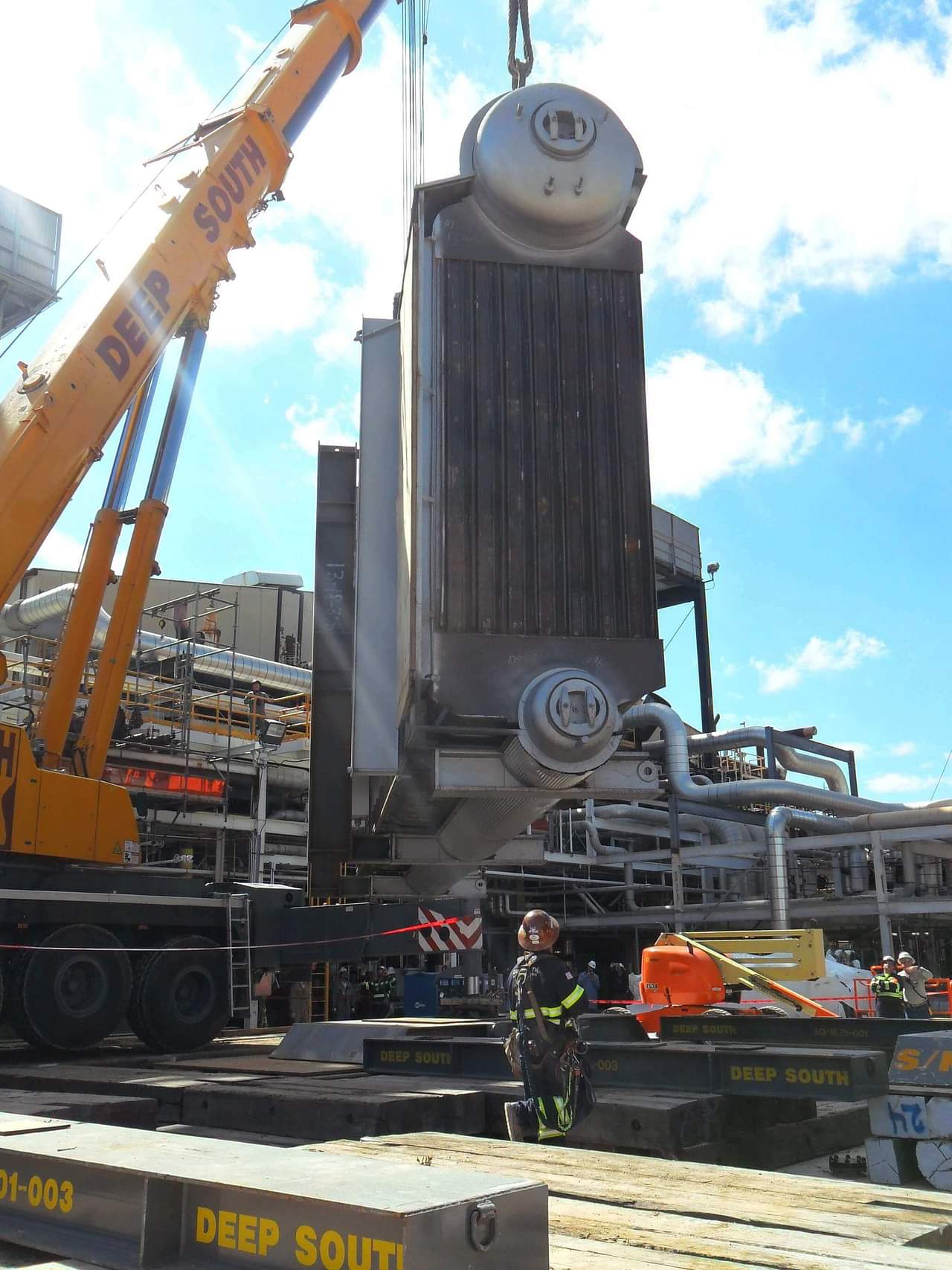

Boiler Lift for Petrochemical

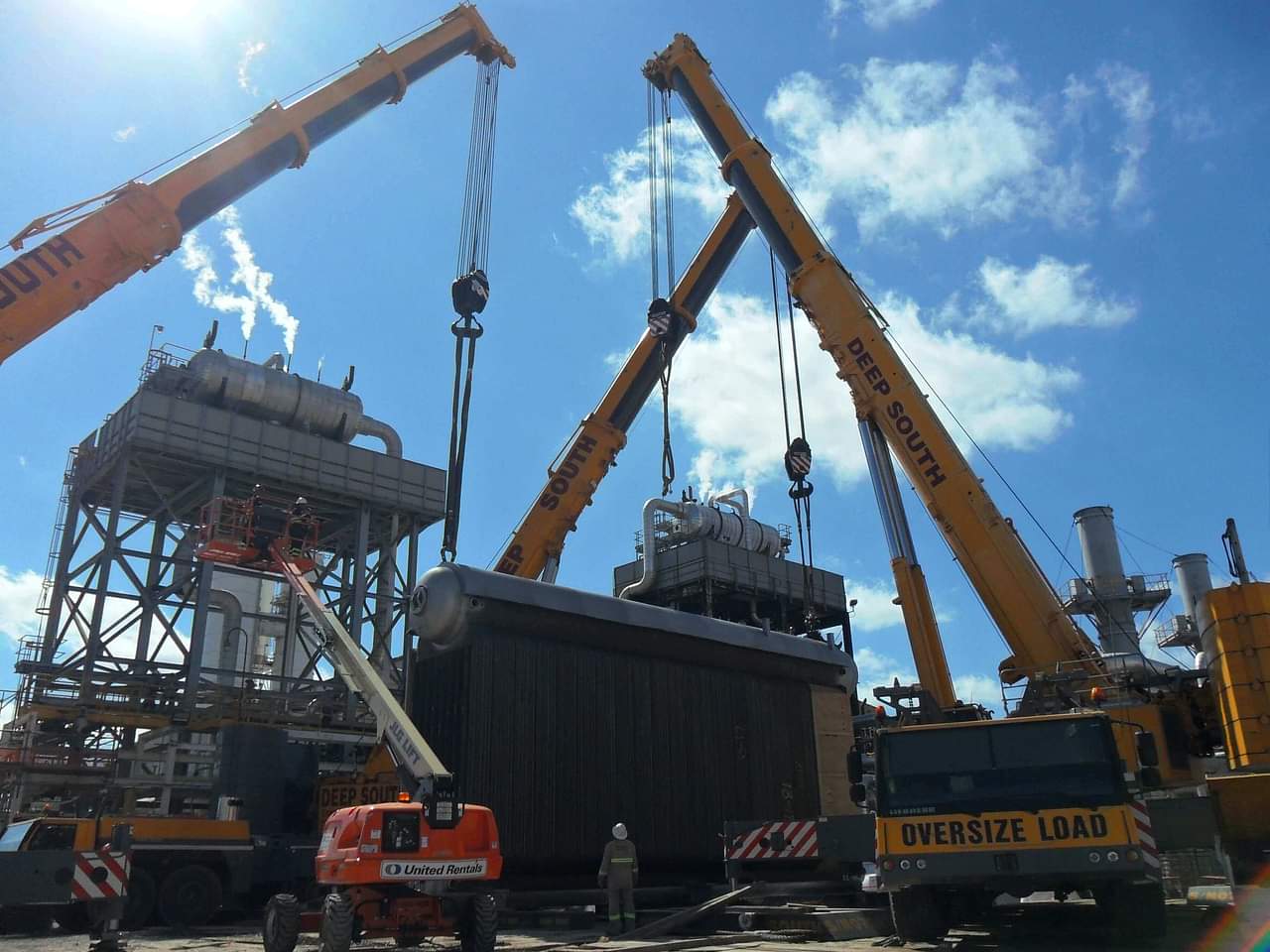

500-ton Liebherr LTM
12-line double-wide Scheuerle SPMTs

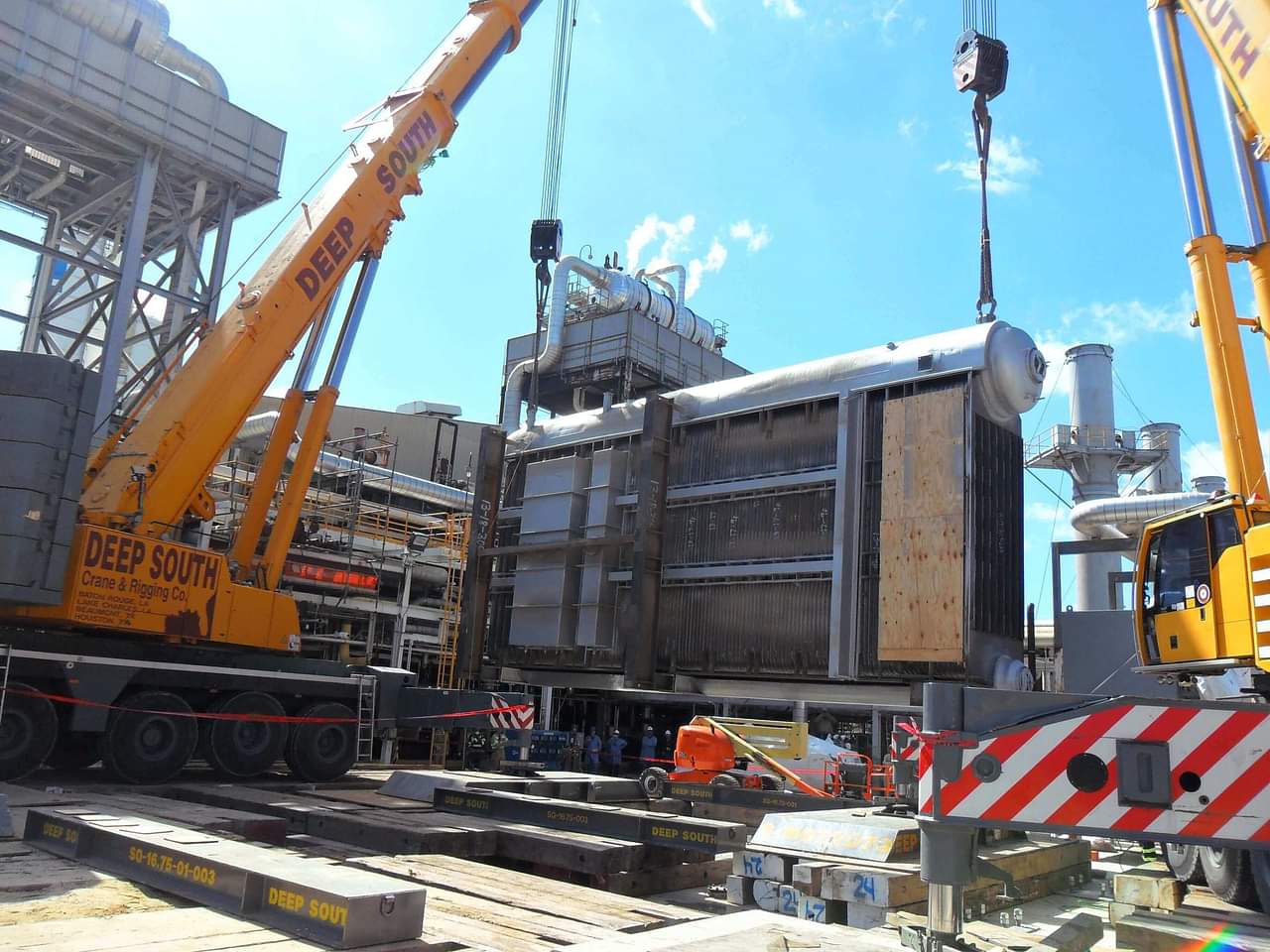

Setting Boilers with the Liebherr LTM
